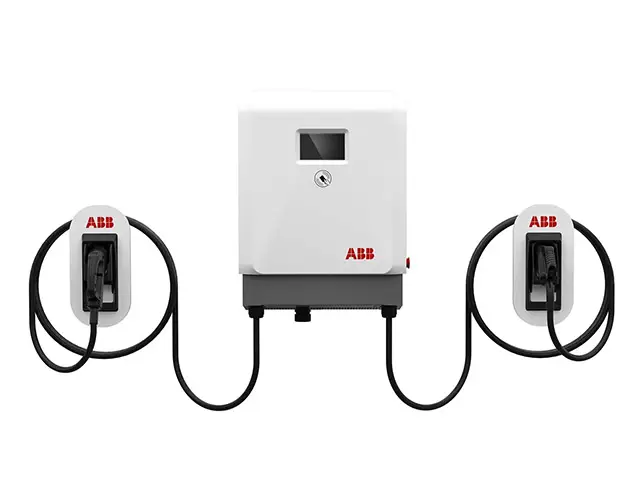

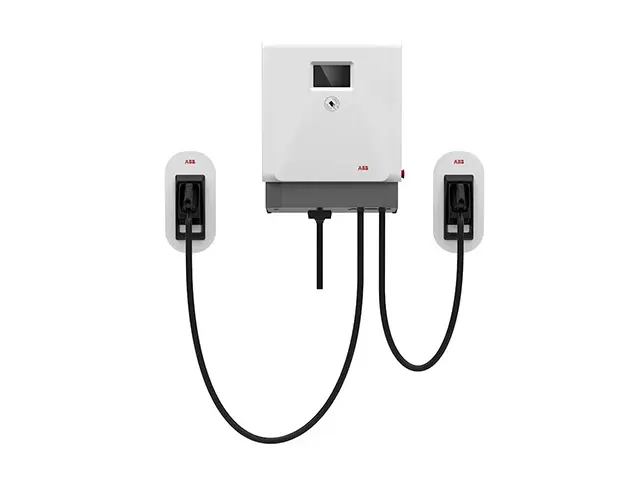

ABB Terra 24 Wallbox DC – 24kW
The DC charging of electric vehicles is made possible by the Terra 24 DC Wallbox. The most cost-effective option for DC charging, perfect for businesses, fleets, and large households.
- Charging Speed – 24 kW (150 kilometers per hour of charge)
- OCPP (1.5/1.6) & RFID Authorisation
- Compact Size
- Easy to install
- CCS 2, Fast-charging system-Audi, BMW, EQC, Hyundai, Jaguar, KIA, Mercedes Benz, Mini, Polestar, Renault, TESLA, Volkswagen, Volvo, CHAdeMO, the Japanese fast-charging system Mitsubishi, Nissan
DC chargers are suitable when there’s a need to turn over vehicles quickly. The ABB Terra 24 Wallbox is available in either a CCS 2 configuration with a single cable or a CCS 2 configuration with both a single cable and Chademo.
CCS 2, Fast-charging system
Audi, BMW, EQC, Hyundai, Jaguar, KIA, Mercedes Benz, Mini, Polestar, Renault, TESLA, Volkswagen, Volvo
CHAdeMO, the Japanese fast-charging system
Mitsubishi, Nissan

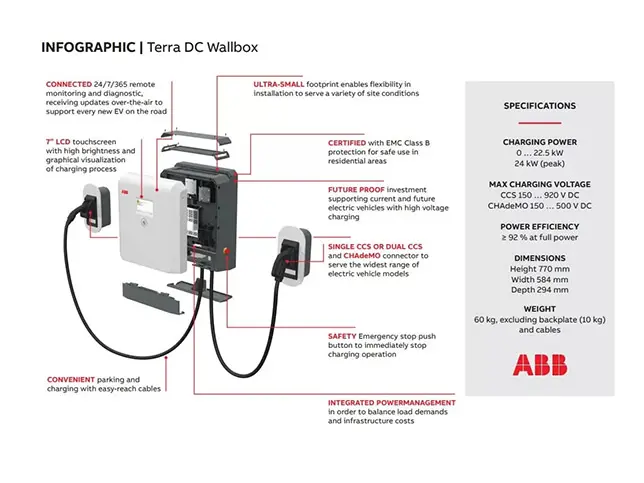

Features
- Single Outlet CCS2 or Dual CCS 2 and CHAdeMO
- Cable Length 3.5m
- 24 kW Peak Power
- 22.5kW Continuous Power
- CCS2 DC Voltage Output 150-920VDC / 60A
- Chademo DC Voltage Output 150-500VDC / 60A
- Voltage Input 400 VAC +/-10 % (50/60 Hz) / 40A
- CE EMC Cl. B
- Daylight readable 7” full color touchscreen display
- OCPP (1.5/1.6) & RFID Authorisation
- Basic CCS2 & Chademo Plug Holders included
