ABB Terra94 DC Fast Charger – 90 kW
One Terra94 receptacle can deliver up to 90 kW of power to a single vehicle.
- Charging Speed – 90 kW (540 kilometers per hour of charge)
- 90 kW, 120 kW,180 kW Versions available
- Compatible with all-electric vehicles with DC Capabilities
The Terra94 is a connected fast-charging station designed for vehicles with Combined Charging Standard (CCS2) or CHadEMO connectors. With its 90 kilowatts of charging capacity, it can quickly charge electric vehicles with a maximum voltage of 920 volts for CCS or 500 volts for CHadEMO.
Features
- 90kW (max) HV DC output power

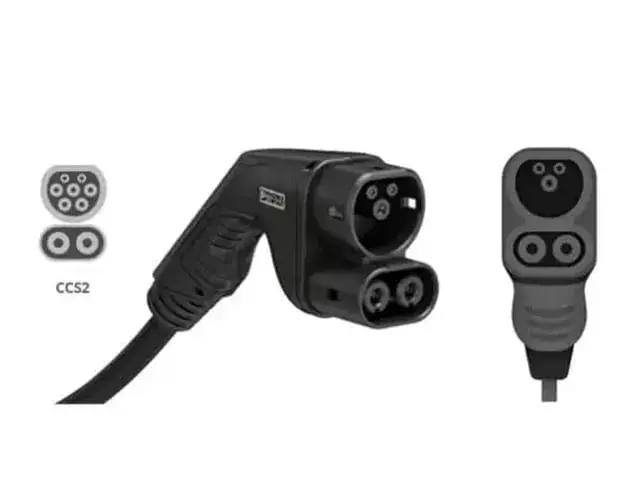

- CCS2 or CHadEMO or both
- CCS2: Voltage 200-920VDC max. 200A
- Standard cable length 3.9m (upgrade to 6m w/ cable management available)
- Power available to only one CCS2 outlet at a time
- 7” daylight readable LCD touch screen
- RFID reader enables RFID Authentication functionality.
- ISO 14443 A + B to part 4 and ISO/IEC 15693 Mifare, NFC, Calypso, Ultralight, PayPass, HID
- Temperature: -35 degC to +55 degC (de-rating characteristics apply)
- Cabinet size: 565 x 880 x 1900 mm
- IP54, powder coated stainless steel housing
- Support of OCPP interface
- Ethernet & 4G modem communications
- Max Rated Input Current & Power
- Voltage: 400 VAC +/- 10% (50 Hz)
- Current: 187A (128kVA)
- PF >0.96
- THDi <5%
If variable power is necessary, the Terra Range is available in 90,120, and 180kW models. Modules power the units, which can be modified and retrofitted.
