the product CCS 2 Inlet – 200 Amp

CCS 2 Inlet – 200 Amp

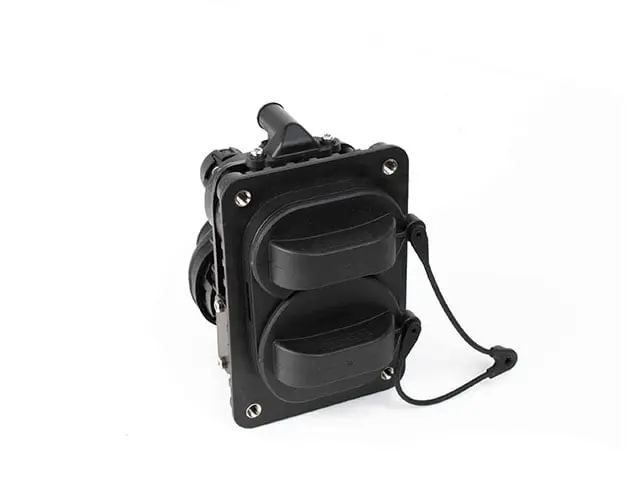

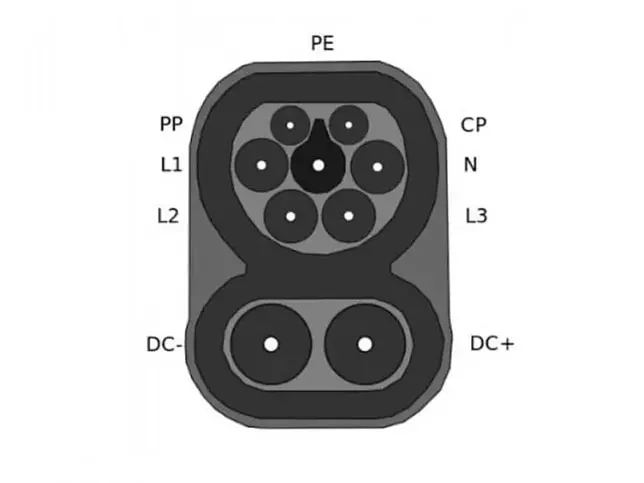

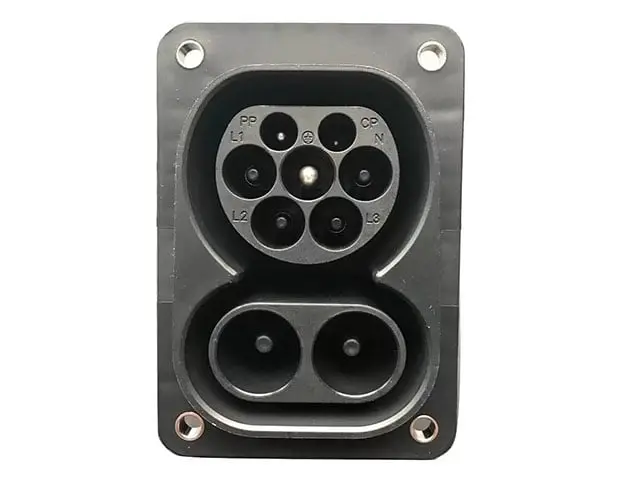

CCS 2 Socket/Inlet (EV Side) The Plug-in Hybrid Electric Vehicle (PHEV) and Electric Vehicle (EV) Convenient Charging System Inlet is an industry-standard vehicle connector. Type 2 inlets and connectors that enable European/Australian and increasingly international standards for AC & DC Charging.

  • CE & TUV approved
  • Operating temperature: -30°C – +50°C
  • DC max charging power: 127.5kW
  • AC max charging power: 41.4kW

Get your best price on the CCS 2 Inlet – 200 Amp

What Would You Like a Quote On?

The Plug-in Hybrid Electric Vehicle (PHEV) and Electric Vehicle (EV) Convenient Charging System Inlet is an industry-standard vehicle connector. Type 2 inlets and connectors that enable European/Australian and increasingly international standards for AC & DC Charging.

Features

  • Meet 62196-3 IEC 2011 SHEET 3-Im standards

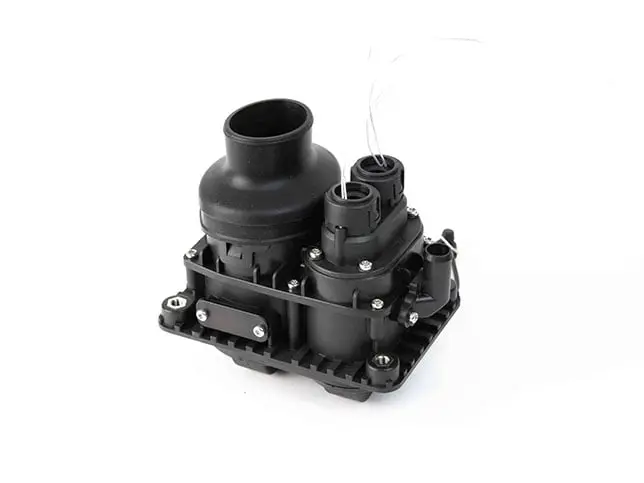

  • Concise appearance, support back installation
  • Improved safety performance due to contact with drainage structures
  • Safety pins with insulated heads to avoid unintentional direct staff contact

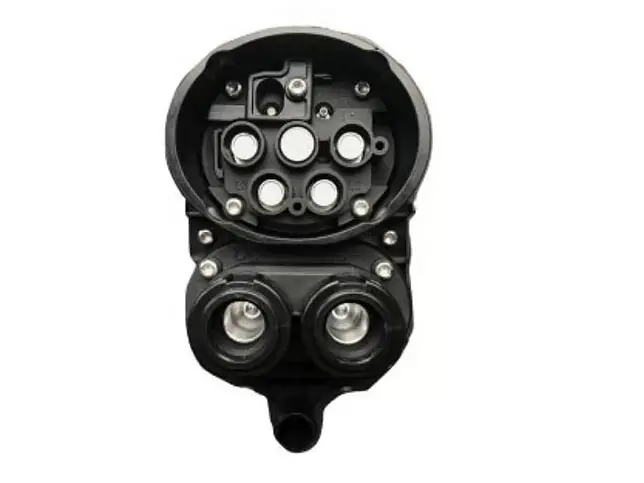

  • Back protection class IP55

Electric Performance

  • DC input: 125 / 150A / 200A 1000V DC MAX
  • AC input: 16A 32A 63A / 415VAC MAX
  • DC Max charging power: 127.5KW
  • AC Max charging power: 41.5KW
  • Insulation resistance: >2000MΩ (DC1000V)
  • Terminal temperature rise.: <50K
  • Withstand Voltage: 3200V
  • Contact Resistance: 0.5m Ω Max

Mechanical Properties

  • Mechanical life: no-load plug in / plug out > 10000 times
  • Coupled insertion force: >45N<80N
  • Impact of external force: can afford 1m drop test and 2T vehicle run overpressure
  • Case Material: Thermoplastic, Flame retardant grade UL94-0
  • Contact bush: Cooper alloy+ thermoplastic on the top
