Delta DC Wallbox Rapid Charger – 25kW
You can now charge electric vehicles 12 times faster than before with a regular household outlet thanks to the Delta DC wallbox 25kW. The best option for cost-effective DC charging is best suited for fleet, commercial, and big residential purposes.
- Charging Speed – 25 kW (150 kilometers per hour of charge)
- RFID card reader for
user authentication - Network connectivity (OCPP 1.5S and 1.6J)
- Compact Size 43kg
- Easy to install
- CCS 2, Fast-charging system-Audi, BMW, EQC, Hyundai, Jaguar, KIA, Mercedes Benz, Mini, Polestar, Renault, TESLA, Volkswagen, Volvo, CHAdeMO, the Japanese fast-charging system
Mitsubishi, Nissan
In contrast to AC chargers, which use the vehicle’s rectifier to convert AC power into DC to charge the vehicle, the Delta DC Wallbox 25kW Charger delivers DC current directly to the batteries of EVs. The majority of vehicle rectifiers are capped at 7 to 11 kW and are made for everyday use. When a very quick charge is required right away, DC chargers are designed. The majority of daily driving just needs an AC Charger. When turning over vehicles fast is required, DC chargers are appropriate.
Both a CCS and CHAdeMO plug are included with the Delta DC Wallbox as standard. Please note that DC charging is not a standard feature on all EVs.
CCS 2, Fast-charging system
Audi, BMW, EQC, Hyundai, Jaguar, KIA, Mercedes Benz, Mini, Polestar, Renault, TESLA, Volkswagen, Volvo
CHAdeMO, the Japanese fast-charging system
Mitsubishi, Nissan
Features
- CCS / CHAdeMO dual charging ports
- Max. 94% power efficiency
- RFID card reader for user authentication
- Network connectivity (OCPP 1.5S and 1.6J)
- IP55 protection and IK08 vandal-proof casing Robust design
- The metal housing of the Delta DC wallbox makes it weatherproof and robust
- Input- 380-415 Vac; 50 / 60 Hz; Three-phase / L1, L2, L3, N, PE; 50A max, 230 Vac; 50 / 60 Hz; Three-phase / /L1, L2, L3, PE; 90A max
- Power Factor > 0.98
- Efficiency- 94% at nominal output power
- Stand-by Consumption- <20 W
- Protection- Over current, Under voltage, Over voltage, Surge protection, Short circuit, Over temperature, Ground fault
- 2.7” OLED screen
- Languages- English, French, German, Spanish (other languages available upon request)
- Multi-functional buttons (LED light: Orange, Blue) / Emergency stop button (Red)
- User Authentication ISO/IEC 14443 Type A/B RFID
- Ethernet, Cellular
- -30°C to +50°C (-22°F to +122°F) Derating from +50°C to +60°C (+122°F to +140°F)
- Cooling- Forced air
- Cable length- 4 m (13 ft.) (standard)
- 680 x 430 x 230 mm (27 x 17 x 9 inch) / 43 kg (95 lb), excluding plug and cable

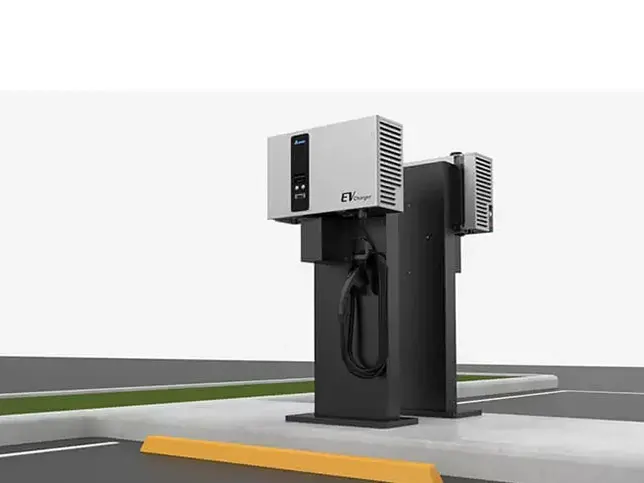

- Wall-mount or optional stand
- Compliance- CHAdeMO / IEC 61851-1 / IEC 61851-23
DC Output #1 IEC CCS DC Level 2, 50-500 Vdc, 60A max., 25kW max.
DC Output #2 CHAdeMO, 50-500 Vdc, 60A max., 25 kW max
