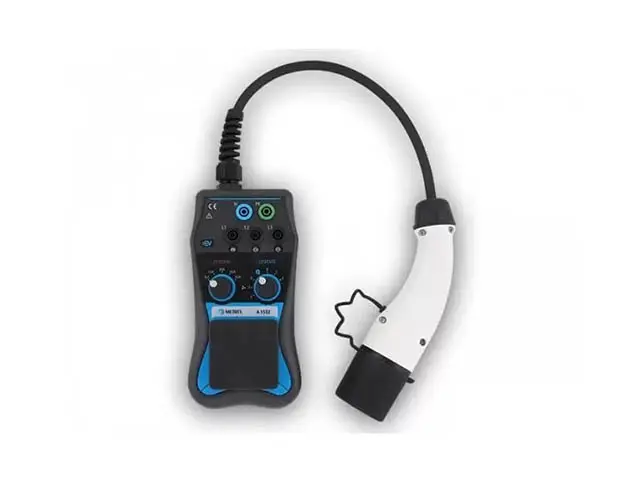

EV Charger Tester – Metrel – 1532 Adapter

The A 1532 is an extender for EV chargers, sometimes referred to as EVSEs (Electric Vehicle Supply Equipment), that interfaces with them. It checks the installation socket’s socket for electrical performance and safety. suitable for testing Type 2 connector-equipped Mode 3 (Level 2) EV charging stations. A1532 ESVE adapter is a unique add-on for METREL installation testers or other multi-purpose measuring devices.

  • Connects like an electric vehicle connection; tests the entire system; connects directly to charge ports without opening the box.
  • Simulates the status of an electric vehicle: everything is controlled by a switch.
  • Simple connections can be made to the tester and the charge point using a type 2 EV plug and an AS3112 socket, respectively. Alternatively, all three phases can be accessed using conventional 4 mm connectors.
  • Any installation tester can be used with the A 1532, however Metrel Multifunction Testers deliver the best results.

Get your best price on the EV Charger Tester – Metrel – 1532 Adapter

What Would You Like a Quote On?

You may service and test EV Chargers installed in public and commercial places for electrical safety and compliance with AS3000 standards with this equipment for testing electric car charging stations. You may thoroughly test any charging station with the EVSE adaptor.

Inclusions:

  • Instrument
  • Soft Carrying Bag
  • Instruction Manual

Application:

  • On-site evaluation of the EVSE charging station setup.
  • Private, semi-private, and public EVSE charging stations have undergone initial and ongoing testing.

Any EV Charger is put through safety and compliance testing by the Metrel EVSE A 1532:

  • Banana socket outputs for connection to 3-phase installation tester
  • Voltage indicators on EVSE output
  • Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection
  • Control Pilot resistance selector for simulation of electric vehicle status
  • Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE)
  • Type 2 Male Plug connector for connection to EVSE
  • 6 mA EV RCD support
  • Functional tests support*
  • EVSE AUTO SEQUENCE® support*
  • MESM report creation**
  • Basic support: A 1532
  • Partial support: 6 mA EV RCD
  • EVSE report**
  • EVSE AUTO SEQUENCE® support
