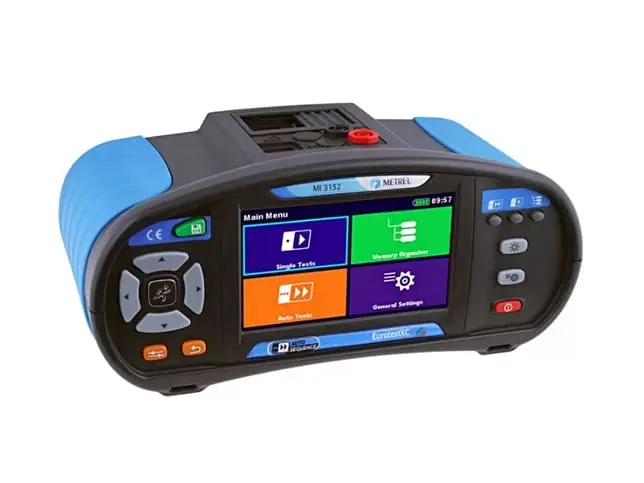

EV Charging Station Tester – Metrel – MI 3152 XC

The most sophisticated series of multifunctional measuring tools from Metrel is made exclusively for industrial testing and includes a whole section on testing for electric vehicle charging stations. its user-friendly touch screen interface, which includes a memory organizer and fully customizable AUTO SEQUENCEs, and ergonomic design.

  • Connects directly to charge points without opening the box.
  • Connects like an electric vehicle connection; so tests the whole system.
  • Simulates the electric vehicle status: all at the turn of a switch.
  • Simple connection to the charge point via a type 2 EV plug, and to the tester using the BS1363 socket or all three phases can be accessed using standard 4 mm connections.
  • The A 1532 can be used with any installation tester, however, optimum performance is achieved with Metrel Multifunction Testers.

Get your best price on the EV Charging Station Tester – Metrel – MI 3152 XC

What Would You Like a Quote On?

You may service and test EV Chargers installed in public and commercial places for electrical safety and compliance with AS3000 standards with this equipment for testing electric car charging stations. Only the MI 3152 XC supports functional tests, including AUTO SEQUENCE®, which calls for the 1532 Adapter.

The installation, operation, and safety of the EV charging station as well as all other aspects of electrical installations can be examined using the Metrel MI3152 XC Multifunction Installation Tester. With the push of a button, it can test EV RCDs, has EVSE AUTO SEQUENCES, and functions that allow the user to examine each component of EV charging stations state-by-state.

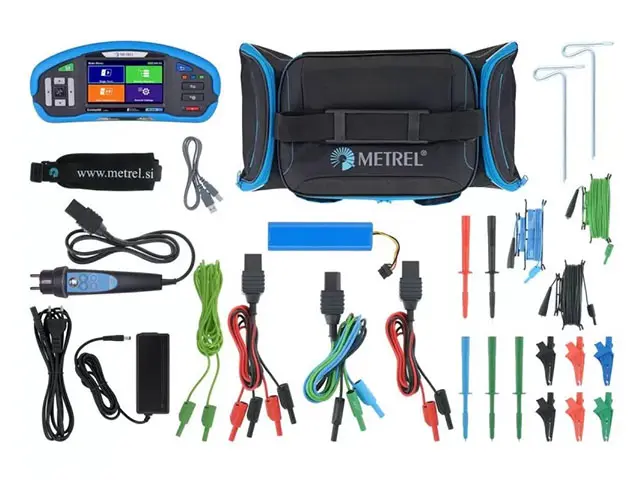

Inclusions:

  • Instrument
  • Soft Carrying Bag
  • Instruction Manual

Application:

  • On-site evaluation of the EVSE charging station setup.
  • Private, semi-private, and public EVSE charging stations have undergone initial and ongoing testing.

Measuring functions:

  • Live Transformer’s Impedance Measurement with Four Wire Test;
  • Hi-precision Short Circuit Current evaluation with Calculated Hot factor;
  • 3-wire test of PE (RPE function) without extension lead conductor;
  • Autotest insulation function between L-N, N-PE and L-PE (R ISO ALL function);
  • 4 wire continuity test;
  • Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation;
  • Varistor test;
  • Continuity of PE conductors with 200 mA DC test current with polarity change;
  • Continuity of PE conductors with 7 mA test current without RCD tripping;
  • 2-wire and 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
  • Touch voltage / Contact voltage measurement with external P/S probe.
  • 2-wire and 3-wire line impedance (L-L, L-N) measurement;
  • 1-phase / 3-phase TRMS voltage and frequency measurements;
  • Line, loop and RCD measurements at frequency range 16 … 400 Hz;
  • Phase sequence;
  • Power and THD measurement (up to the 12th harmonic);
  • RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
  • Earth resistance (3-wire and 2-clamps method);
  • Specific earth resistance with Ro-adapter (option);
  • TRMS leakage and load currents (option);
  • First fault leakage current (ISFL);
  • Testing of Insulation Monitoring Devices (IMDs);
  • Machine mode support with time discharge;
  • Illumination (option);
  • High resolution Loop impendance (mΩ) (option);
  • EVSE (Electrical Vehicle Supply Equipment) support (option);
  • Determining location of cables (option);
  • QR and/or barcode scanner support (option).

Key features:

  • Programmable AUTO SEQUENCEs. *
  • Predefined profile dependent AUTO SEQUENCEs.
  • Predefined Automatic tests:
    • Auto TT (U, Zln, Zs, Uc);
    • Auto TN/RCD (U, Zln, Zs, Rpe);
    • Auto TN (U, Zln, Zlpe, Rpe);
    • Auto IT (U, Zln, Isc, Isfl, IMD).
  • High resolution colour touch screen, 4.3” TFT
  • Functional inspections.
  • Visual inspections.
  • Custom inspections (visual and functional) which may be incorporated into AUTO SEQUENCEs.
  • EVSE AUTO SEQUENCEs and function inspections.
  • Machine functional and visual inspections.
  • Built-in help screens for referencing on site.
  • Built-in fuse tables for automatic evaluation of the line / loop impedance result.
  • Monitoring of all 3 voltages in real-time.
  • Automatic polarity reversal on continuity test.
  • Automated RCD testing procedure (RCD AUTO).
  • Automated Impedance testing procedure (Z AUTO).
  • Measurement filtering according to the selected area group.
  • Built-in charger and rechargeable batteries as standard accessory.
  • BT communication with PC, Android tablets and smart phones via built-in BT.
