KEBA Smart Commercial Fast EV Charging Station – X-Series – 22KW

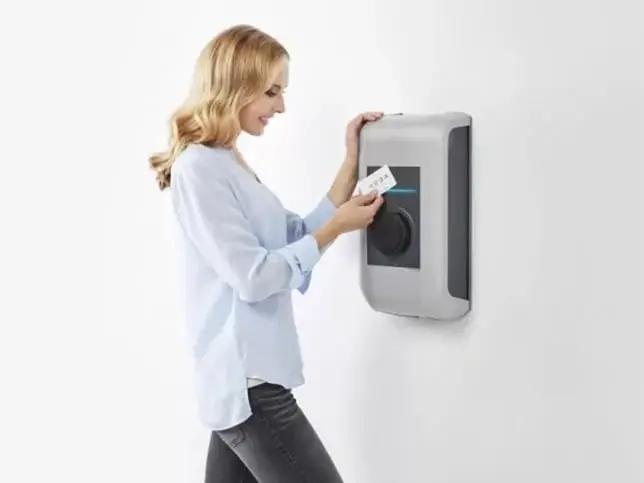

You may integrate, control, and bill EV customers for electricity usage or time spent charging an EV with the Commercial KEBA P30 X-series. The commercial X-series includes features like energy metering, RFID/NFC user authentication, and billing services so you may charge users for access. DC protection sensor is a regular inclusion.
- 22kW 32Amps -415V (3 Phase)
- Warranty – 2 Years
- Indoor and Outdoor Rated
- Compatible with all electric cars, such as the BMW i3, BMW 330e, BMW X5 xDrive40e, Holden Volt, Nissan Leaf, Mitsubishi Outlander PHEV, Toyota Prius Plug-in, Volvo XC90 T8, Mercedes-Benz 350e Sedan, Hyundai Ioniq, Tesla Model S, Tesla Model X, Renault Kangoo ZE, Renault ZOE, and Volkswagen E-Golf.
The x-series can be used to best deploy smart e-mobility solutions. The adaptable gadget provides dynamic load management in addition to intelligent control of numerous charging sources. Up to 15 c-series devices can be managed by a single x-series wallbox. A central configuration and the viewing of individual charging sessions are both made possible through the corresponding online interface. A WLAN connection interface is a feature that comes standard on all x-series machines.
All wallboxes have:
- Type 2 charging socket
- White design cover
- LED bar for charging status
- Single and three-phase operation
- Freely programmable display
- Enable input / switching output
- DC-leakage detection
- USB connection for firmware updates and configuration
- RJ45 Ethernet connection for firmware updates and debugging
- Ethernet connection LSA+ for a permanent connection to backend or smart home servers or other KeContact P30 wallboxes
- UDP interface and Modbus TCP (passive) for integration in smart home and PV systems (via external controller)
- Modbus TCP (active) communication with the external energy counter for charging current regulation and house connection monitoring
- OCPP, communication for load management and backend connection as master or stand-alone
- KEBA eMobility App to control and manage the wallbox
Features:
- 22kW 32Amps -415V (3 Phase)
- 7.4KW 32Amps- 240V (1 Phase)
- Smart Solar integration through UDP commands
- Stop and start charging while dynamically adjusting the amps available to the car. The kW available to the car for solar export and grid imports can be increased by integrating this with a solar panel inventor.
- A must-have for anyone off grid so you can avoid doing damage to your house batteries allowing you to shed car load when other activity happens in your house, heaters, washing, showers etc
- DC fault detection meaning a cheaper RCD type A which save $$$ on installation
- Compatible with all electric cars, such as the BMW i3, BMW 330e, BMW X5 xDrive40e, Holden Volt, Nissan Leaf, Mitsubishi Outlander PHEV, Toyota Prius Plug-in, Volvo XC90 T8, Mercedes-Benz 350e Sedan, Hyundai Ioniq, Tesla Model S, Tesla Model X, Renault Kangoo ZE, Renault ZOE, and Volkswagen E-Golf.
- Warranty- 2 years
- Indoor and Outdoor Rated
- Dimensions- (240 x 495 x 163 mm)
- Weight- 4.8 kg
- Meets both European & Australian standards
- RCM Mark, CE compliant, UL / VDE certified to IEC61851-1 and -22 Individually protected electric components inside the wall box casing.
- ZE Ready Certified and is therefore suitable for charging Renault electric vehicles, such as the ZOE and Kangoo.
- DC Protection for increased safety
- Overload integrated protection
- Coloured LEDs indicate operating status
