KEBA Smart Home Solar EV Charging Station – C-Series – 22KW

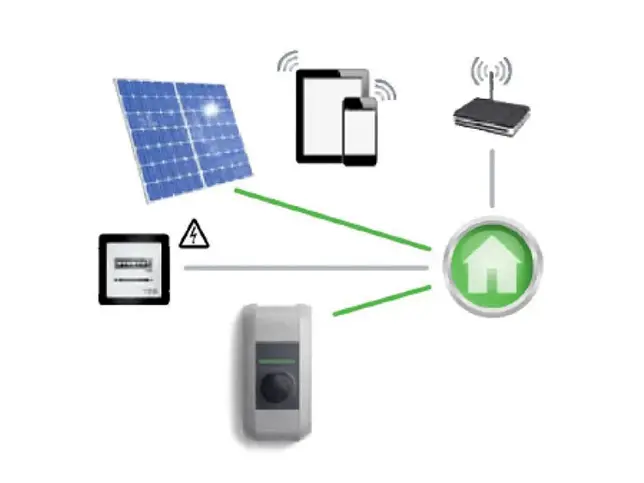

For automated homes that want to maximize their ability to charge electric vehicles, the Keba Smart Home Connected Series is the most cutting-edge option. You can implement a variety of control functions, including closed-loop control and a decrease in your energy usage when used in conjunction with a photovoltaic (PV) system, with the right home automation controllers via UDP. This could help with self-consumption optimization, overload prevention, and a decrease in grid connection fees. To make it the fastest and safest EV charger money can buy, all of these capabilities are integrated into the cutting-edge Keba KeContact P30 charging station, which also contains advanced safety features like temperature regulation, automatic monitoring, and inbuilt DC Fault prevention.

All wallboxes have:

• Type 2 charging socket
• White design cover
• LED bar for charging status
• Single and three-phase operation
• Freely programmable display
• Enable input / switching output
• DC-leakage detection
• USB connection for firmware updates
• RJ45 Ethernet connection for firmware updates and debugging
• Ethernet connection LSA+ for a permanent network connection to an x-series or other systems
• UDP interface and Modbus TCP (passive) for integration in smart home and PV systems (via external controller)
• Communication for OCPP and load management as client
• KEBA eMobility App to control and manage the wallbox

Features:

• 22kW 32Amps -415V (3 Phase)
• 7.4KW 32Amps- 240V (1 Phase)
• Smart Solar integration through UDP commands
• Stop and start charging while dynamically adjusting the amps available to the car. The kW available to the car for solar export and grid imports can be increased by integrating this with a solar panel inventor.
• A must for anyone living off the grid in order to prevent battery degradation and reduce the amount of car load when using the heater, washing machine, shower, etc.
• DC fault detection meaning a cheaper RCD type A which save $$$ on installation
• Compatible with all electric cars, such as the BMW i3, BMW 330e, BMW X5 xDrive40e, Holden Volt, Nissan Leaf, Mitsubishi Outlander PHEV, Toyota Prius Plug-in, Volvo XC90 T8, Mercedes-Benz 350e Sedan, Hyundai Ioniq, Tesla Model S, Tesla Model X, Renault Kangoo ZE, Renault ZOE, and Volkswagen E-Golf.
• Warranty- 2 years
• Indoor and Outdoor Rated
• Dimensions- (240 x 495 x 163 mm)
• Weight- 4.8 kg
• Meets both European & Australian standards
• RCM Mark, CE compliant, UL / VDE certified to IEC61851-1 and -22 Individually protected electric components inside the wall box casing.
• ZE Ready Certified and is therefore suitable for charging Renault electric vehicles, such as the ZOE and Kangoo.
• DC Protection for increased safety
• Overload integrated protection
• Coloured LEDs indicate operating status
