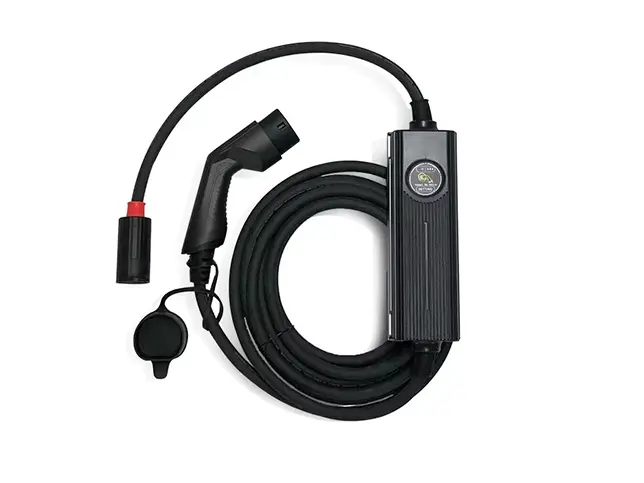

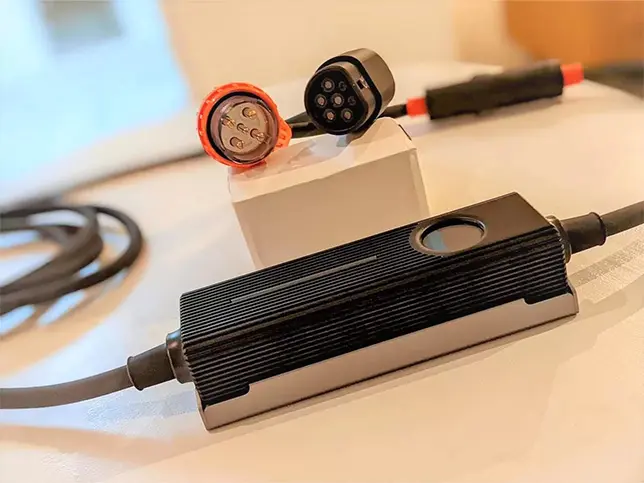

KWIK Portable Type 2 EV Charger – w/ Adaptable Tails – 16.5KW
Unlock every powerpoint in Australia with the portable that controls them all, from 8A single phase to 32A three phase. With one portable charger, you can guarantee a secure, reliable, and safe charge thanks to automated plug recognition and an intelligent touchscreen.

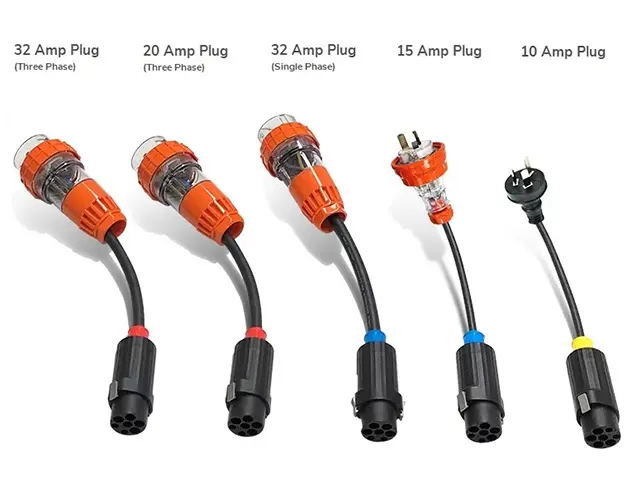

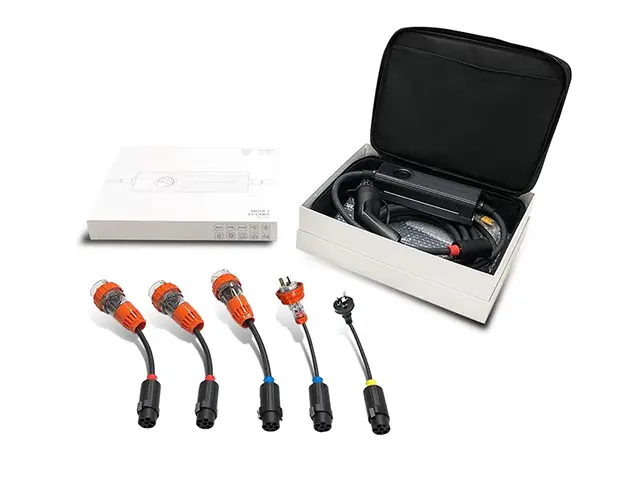

- Carry case

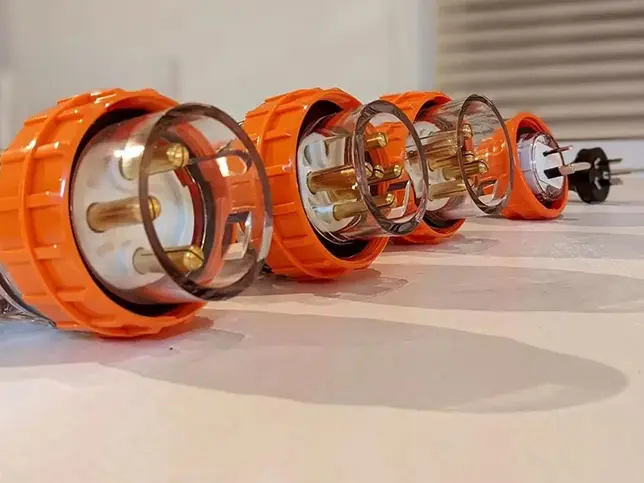

- 240V 10A connector tail (Single Phase)
- 240V 15A connector tail (single phase)
- 240V 32A connector tail (single phase)
- 415V 20A connector tail (three phase)
- 415V 32A connector tail (three phase) (Delivers 24 Amp maximum)
Electrical Specs
Input / Output voltage AC 230V/400V
Input/Output Current:
- 1x8A – Plugs into 10Amp Outlet
- 1x15A – Plugs in 15Amp outlet
- 1x32A – Plugs into 3-pin Single Phase Outlet
- 3x16A – Plugs into 5-pin 20Amp Outlet
- 3x24A- Plugs into 5-pin 32Amp Outlet
Power
- 2- 16.5KW
- 50Hz Operating Frequency
- IEC 62196-2 charging interface type
Working Environment
- Waterproof Protection Degree IP66
- Maximum Altitude <2000m
- Environment Temperature -25℃ ~ +55℃
- Non-condensing relative humidity of 5% – 95%
- Standby Power Consumption <8W
- Cooling Natural cooling
Protection
- Over voltage protection
- Under voltage protection
- Over load protection
- Short circuit protection
- Earth leakage protection
- Lightning protection
- Over-temp protection
Function and Accessory
- LCD 1.8-inch color display
- RCD Type A / Type A+6mA
- LED Indicator light Blink (040) Rolling(041)
- Intelligent power adjustment Yes
Certificate
CE, FCC, CCC, ROHS, IK10, IP66
