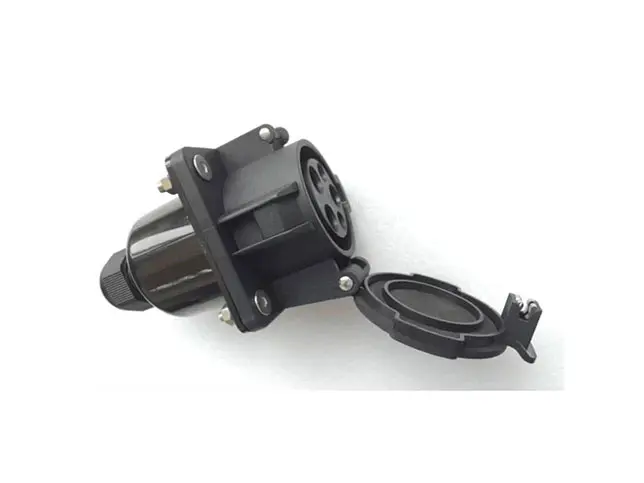

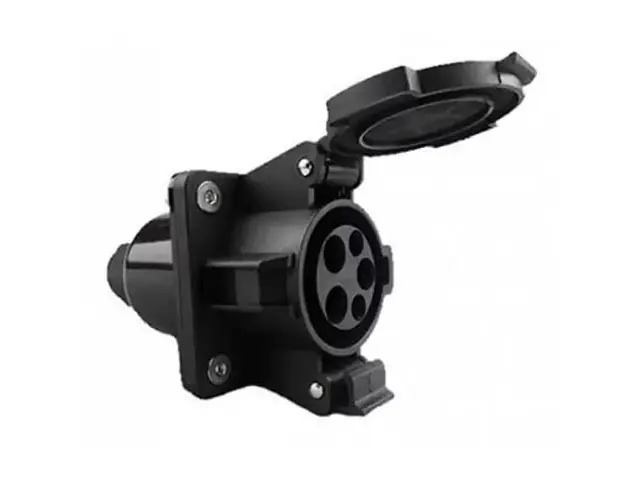

Type 1 (J1772) Inlet – 32A – Single Phase
The industry-standard SAE J1772 inlet, which allows electric vehicles supply equipment (EVSE) and plug-in hybrid electric vehicles (PHEV) to be charged conveniently. The USA and Japan’s Level 1 and Level 2 charging standards are supported via J1772 inlets and plugs.
- Cord Length: Free end
- Meet SAE J1772 2009 (Type 1) North American standard, UL Rated
- Protection class IP54(in mated conditions)
- Apply for Type 1 EV’s.
The industry-standard SAE J1772 inlet, which allows electric vehicles supply equipment (EVSE) and plug-in hybrid electric vehicles (PHEV) to be charged conveniently. The USA and Japan’s Level 1 and Level 2 charging standards are supported via J1772 inlets and plugs.
Parameters:

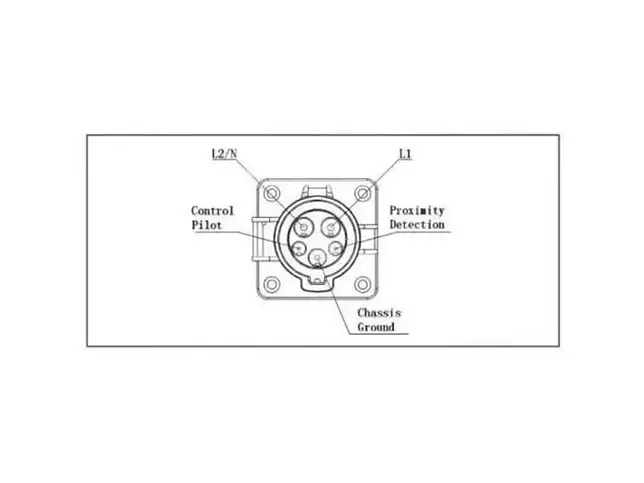

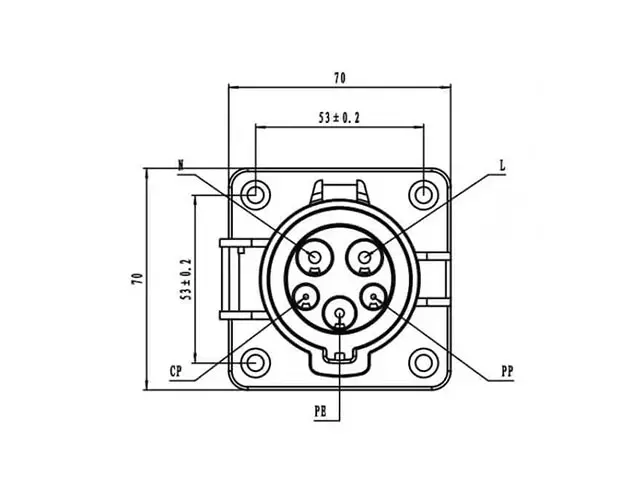

- 5 Pins( L,N,CP,PP,PE)
- Rated current: 30A~32A
- Working voltage: 120 ~240V AC
- Insulation resistance: > 1000M Ω (DC 500V)
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 °C ~ + 50°C
- CE & UL Approval
Materials:
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact bush: Copper alloy, silver plating
- Sealing gasket: rubber or silicon rubber
- Switch hook: Zinc Alloy
Recommended Cable (available on order by email):
- Cable: (TUV,UL Rated)
- 32A: 3*6.0mm2+2*0.5mm2
- Cord length: Free End, 3m(9.8ft), 5m(16.4ft)
