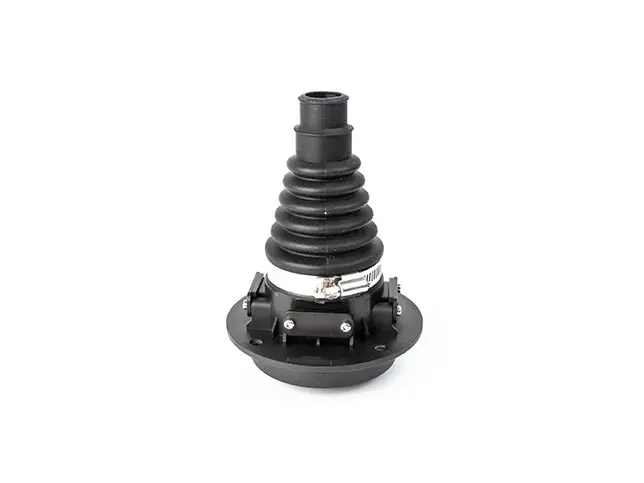

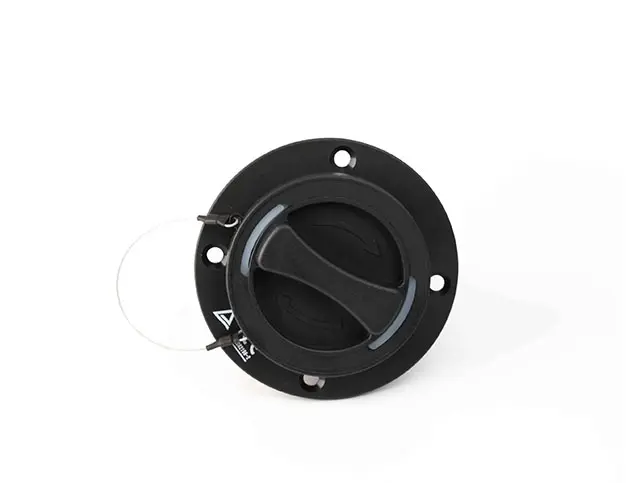

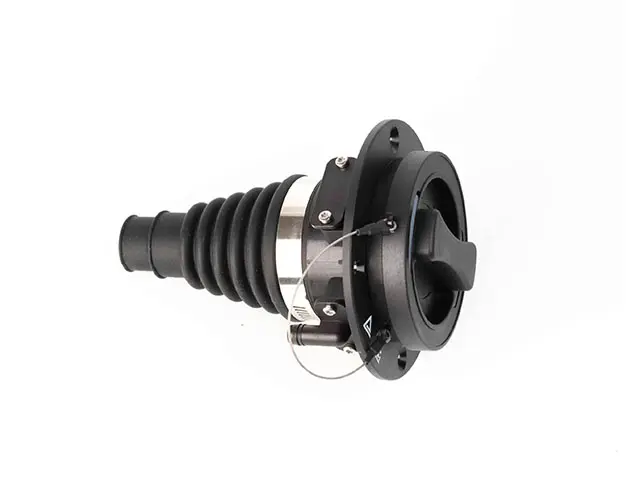

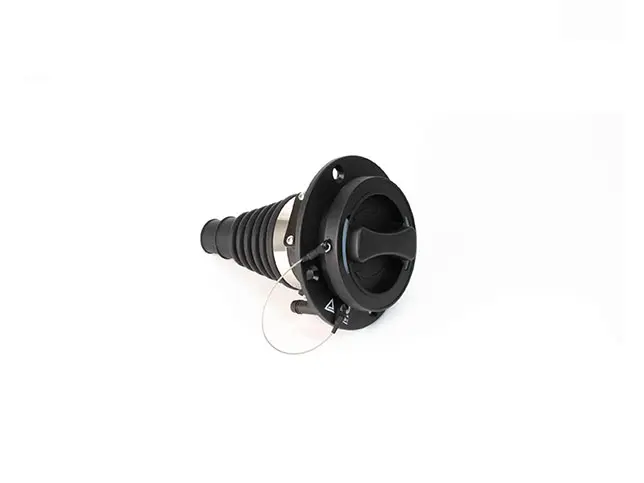

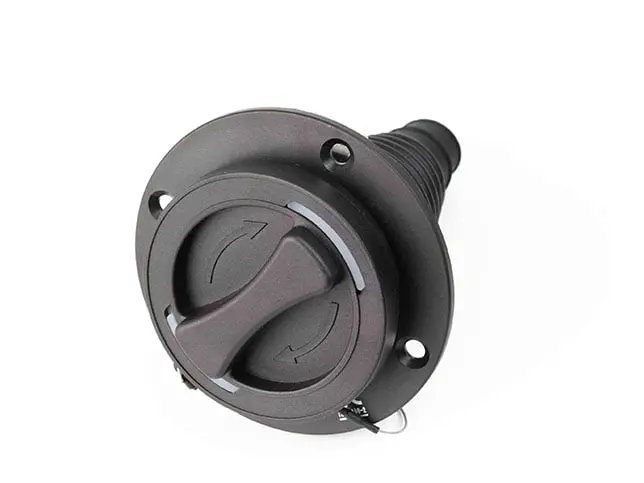

Type 2 (Mennekes) Inlet – 32A – 3-Phase
IEC 62196-2 Male Socket/Inlet (EV Side) 32A with Lid (Type 2 Mennekes)
- Meets IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
- Protection class IP54 (under paired conditions), attractive shape
- Cord Length: Free end
- Adapt the socket type: IEC 62196-2
Plug-in hybrid electric vehicles (PHEV) and electric vehicles can be charged quickly and easily using the Type 2 (Mennekes) inlet, a vehicle connector that is industry standard. Level 1 and Level 2 charging standards from Europe and Australia, as well as more universal standards, are supported by Type 2 inlets and plugs.
Parameters:
- Rated current: 32A
- Operation voltage: 240/415V AC
- Insulation resistance: > 1000MΩ (DC500V)
- Terminal temperature rise: < 50K
- Withstand voltage: 2000V
- Vibration resistance: Meet JDQ 53.3 requirements
- Contact impedance: 0.5mΩ Max
- CE & TUV approved
Materials:
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver plating
- Sealing gasket: rubber or silicon rubber
Recommended Cable (available on order by email):
- Cable: (TUV,UL Rated)
- 32A: 3*6.0mm2+2*0.5mm2
- Cord length: Free End, 3m(9.8ft), 5m(16.4ft)
