Common Signs of a Faulty EV Charger

If your charger hits ‘Fault’ mode, don't assume the box is a lemon. More often than not, it’s a high-tech computer protecting itself from a low-tech problem, like a voltage sag or your home’s original wiring. In Sydney's older suburbs, these units are basically safety scouts; they'll shut down the second they detect your grid is struggling.

If you’re seeing red lights or experiencing trickle speeds on a fast charger, your home’s electrical infrastructure might be struggling to keep up. This guide breaks down the red flags, from simple software glitches to the hidden signs that your switchboard is reaching its limit.

ℹ️ This is an informational guide. If you smell smoke or see sparks, turn off your isolator switch immediately and contact a licensed electrician.

Troubleshooting the Slow Charge (Is it the Charger or the House?)

When a 7kW charger starts crawling at trickle speeds, don't assume the hardware has failed. More often than not, you're looking at thermal throttling.

These units are packed with sensors; if they detect your home's wiring is heating up under the pressure, they’ll 'derate', essentially backing off the power to keep things from melting.

☝️ It’s a safety feature, not a broken part.

Another common culprit is Phase Balancing. In many homes, if you turn on the oven and the dryer while charging your car, your 'smart' charger will detect the spike in house demand and dial back the EV power to keep your main breaker from tripping.

☝️ It isn’t a fault; it’s your charger being smart enough to keep the lights on.

Physical Red Flags: Heat, Smells & Discoloration

Sometimes a fault isn’t an error code; it’s a physical warning. If your charging handle feels uncomfortably hot after an hour, or if you catch a whiff of burning plastic near your switchboard, stop immediately.

Check your plug for pitting or black scorch marks on the metal pins. This usually means 'arcing', where electricity is jumping across a gap because of a loose connection or debris. In coastal suburbs, we often see salt-air corrosion causing these hot spots.

☝️ This isn't a software glitch; it’s a hardware risk that needs a sparky, not a reboot.

The Older Home Factor: Why Modern Tech Fails on Ageing Grids

If your home was built before the mid-2000s, its electrical system likely wasn't designed for a continuous 32-amp draw. In older Sydney pockets, like the Inner West or Eastern Suburbs, original wiring often struggles with the high-demand marathon of an EV charge.

Truth is, that 'fault' is usually just the safety system doing its job. It's basically a computer protecting itself from your house. This is why:

⚡ Voltage Sag

If your home's wiring is on the thinner side, the voltage can 'sag' the moment your car starts pulling power. Modern chargers are sensitive; they’ll spot that drop and kill the session before your cables start to cook. It’s annoying, but it’s better than a melted switchboard.

⚡ The Power Ceiling

Most older mains are capped at 40 or 60 amps. If you’ve got the AC cranking and the oven on while you plug in the EV, you’re basically redlining your switchboard. The main breaker isn't tripping because it's faulty; it's tripping because your house has run out of 'breathing room' for all that power.

⚡ RCD Clashes

Modern chargers have high-end DC protection built right in. The problem is, this often 'fights' with the old-school Type AC safety switches found in older switchboards. It leads to what we call 'nuisance tripping', where the power cuts for no apparent reason, usually just as you've sat down for the night.

🎯 The Verdict

If you're constantly resetting your breaker, the charger isn't broken; it’s protecting your home from an electrical system that isn't built for the load.

Error Codes & Connectivity Issue

Sometimes a fault isn't an electrical hazard; it’s just a bad conversation. Modern chargers are essentially high-powered computers that need a rock-solid link to your wifi and the manufacturer's server to behave.

⚠️ The ‘Boot-Loop’ Blues

If your internet drops out during a firmware update, the unit can get confused and ‘brick’ itself or get stuck in a restart loop. It looks like a hardware failure, but it’s really just a corrupted file.

⚠️ The Concrete Shield

If your charger is tucked away in a basement or on the far side of a brick wall, it might be ‘lonely’. If it can't hear the start command from your app, it will often throw a generic connectivity error code.

⚠️ The Hard Reset Cure

Before you call an electrician, try the ‘IT Crowd’ fix. Flip the dedicated breaker in your switchboard OFF for 30 seconds, then back on. Just like a router, these units often just need a fresh start to clear a digital glitch.

Understanding the ‘Sacrificial’ Parts (Cables & Connectors)

In high-voltage charging, some parts are designed to take a beating so your car’s expensive internals don't have to. We call these "sacrificial" components, specifically your cable and plug.

🔌 Cables are Consumables

Think of your cable like the tyres on your EV. They aren't forever. If the outer jacket is kinked, bulging, or feels soft, it’s failing internally. Replacing a cable is cheap; replacing your car’s onboard charger is not.

🔌 The ‘Crunchy’ Connector

If the plug doesn't click in smoothly, check for grit. Salt air and dust can turn port lubricant into a gritty paste. This ‘crunchy’ connection causes resistance, heat, and those mysterious mid-charge shutdowns.

🔌 Micro-Damage

Dropping the handle on concrete or yanking it at an angle frays the internal copper over time. This creates thermal throttling where the charger slows down because it’s literally struggling to push power through a damaged straw.

Weather & Environmental Stress

Sydney’s weather is a nightmare for electronics. Even if your charger is built for the outdoors, it’s still got a breaking point when the afternoon sun hits 40°C.

🌦️ Thermal Sunstroke

If your charger is on a west-facing wall in 40°C heat, it’ll derate (slow down) to keep its brains from melting. It’s not broken; it’s just taking a breather. If you can’t move it, give it some shade.

🌦️ The Coastal Creep

Near the ocean, salt air builds a white crust (oxidation) on the pins. This film creates heat and ‘ghost faults’. A quick hit of contact cleaner once a year usually keeps the gremlins away.

🌦️ Spider Web Shorts

It sounds like a joke, but Sydney spiders love a warm charging port. Their webs trap moisture, creating a conductive bridge that can trigger a ‘ground fault’ light. Check for cobwebs before you call the cavalry.

When Repair Isn't the Answer

Sometimes, patching up an old charger is just throwing good money after bad. Here is when you should stop fixing and start swapping:

🚨 The Toasted Board

If a surge fries the internal logic, the repair bill usually lands within a couple of hundred dollars of a brand-new unit. If the costs are that close, don't fix the past; invest in a new warranty.

🚨 The Legacy Trap

Early-gen chargers that can't take over-the-air updates are basically dinosaurs. As car software evolves, these older units struggle to ‘talk’ to new EVs. If it's constantly failing the handshake, it’s obsolete.

🚨 Melted Internals

If there’s discoloured plastic or that unmistakable burnt electronics smell, the unit is a fire hazard. At that point, the structural integrity is gone, and a repair is just a safety gamble.

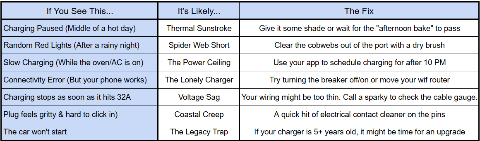

The Symptoms Table

Still seeing red lights? If your charger is still acting up, give us a call on 02 9100 0782 or complete our enquiry form to troubleshoot the grit, the heat, or the hardware before it becomes an expensive fix!
